Gas conveying explosion-proof blower

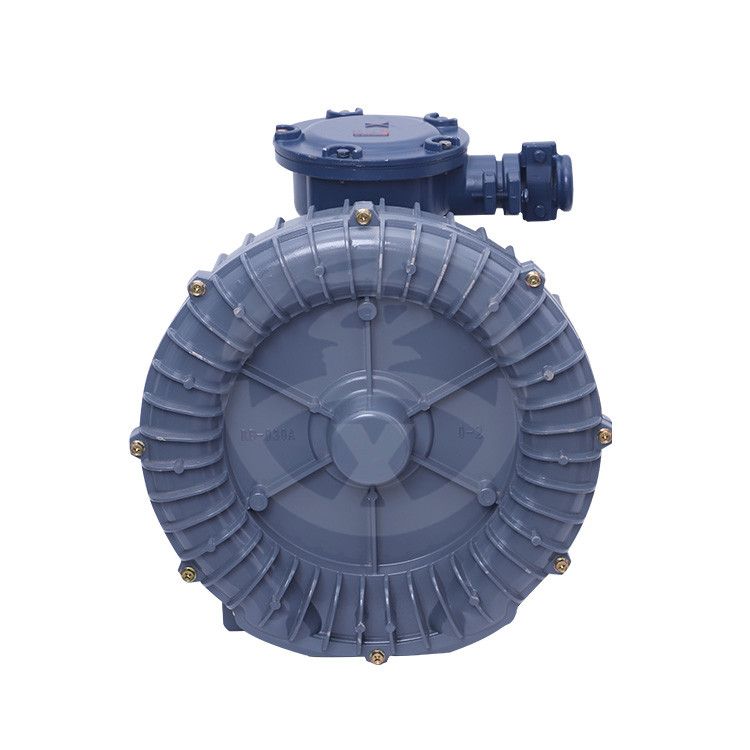

Gas transmission explosion-proof blower FB-3 explosion-proof high drum pressure fanmaintenance and storage;

1. The use environment should always be kept clean, the fan surface should be kept clean, and there should be no sundries at the air inlet and outlet. Regularly eliminate dust and other impurities in fans and pipes.
2. The fan can only be operated under the condition of complete positive gear, and at the same time, the capacity of power supply facilities shall be sufficient, the voltage shall be stable, and it is strictly prohibited to operate without phase. The power supply line must be a line, and temporary power supply shall not be used for a long time.
3. If abnormal noise, serious heating of motor, electrified shell, switch tripping and failure to start are found during operation of fan, shut down the fan immediately for inspection. In order to ensure safety, maintenance is not allowed during fan operation. After maintenance, test run should be carried out for about five minutes to confirm that there is no abnormal phenomenon before starting operation.
4. According to the use of environmental conditions, supplement or replace lubricating grease for bearings from time to time (motor closed bearings do not need to replace lubricating grease during service life). In order to ensure good lubrication during operation of the fan, the number of times of oiling shall not be less than 1000 hours/time. Seal bearings and motor bearings, and fill 2/3 of the inner and outer rings of bearings with ZL3 lithium base lubricating grease. It is forbidden to operate without oil.
5. Fans should be stored in a dry environment to avoid moisture. Rainproof measures shall be taken when the fan is stored in the open air. In the process of storage and handling, the fan should be prevented from bumping, so as to avoid damage to the fan.

FB-3 explosion-proof high pressure blower nameplate marked exhaust pressure is the rated exhaust pressure of the fan, impeller is composed of dozens of blades, it is similar to the huge turbine impeller, when the impeller of the vortex air pump rotates, the air in the middle of the impeller blades by centrifugal force, toward the edge of the impeller, where the air enters the annular cavity of the pump body, and then returns to the impeller, the principle of high pressure fan operation is that the outdoor atmosphere enters the air inlet room through the filter, Then find the corresponding pipeline and fall into the high-pressure fan. The motor drives the turbine rotating at high speed. After increasing the speed and pressure, it enters the diffuser pipe from the outlet guide vane. From the starting point of the vane, it circulates in the same way. Because the air is uniformly accelerated, the circulating air flow generated when the impeller rotates makes the air escape in the form of spiral line. The high-pressure blower uses the precision outer bearing with good heat dissipation, so it has the following advantages: high compression ratio; low bearing operating temperature; Smooth grease has a long life, so the air leaves the pump body with extremely high energy for use.

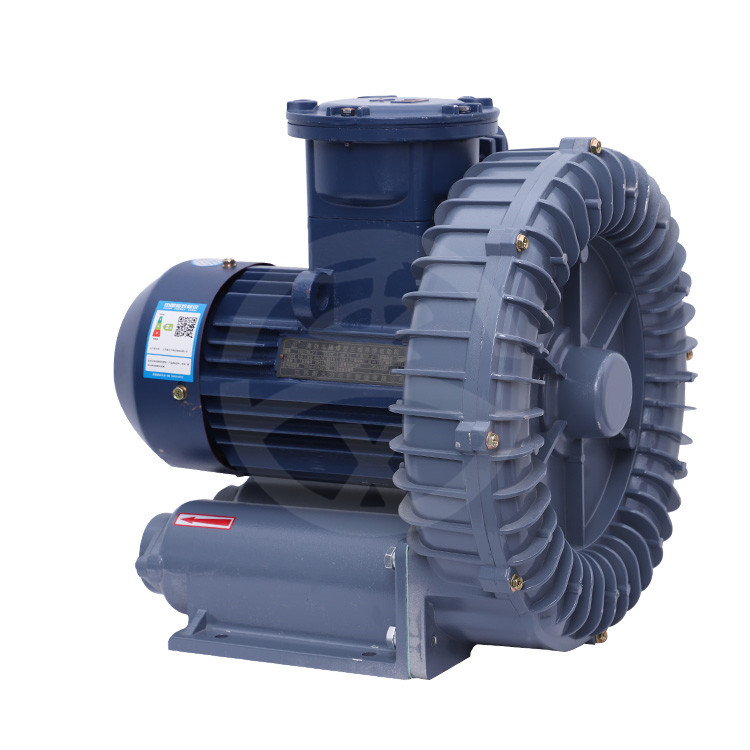

FB-1/0.75kw explosion-proof variable frequency high pressure fan structure is solid (vortex fan inlet and outlet, are equipped with muffler cotton, reduce the wind noise generated by the fan, that is, to achieve low noise, will not bring trouble to the surrounding residents, the wind surface is made of aluminum alloy and milling alloy is different from the general aluminum shell or iron shell of the high pressure air pump, more durable).
